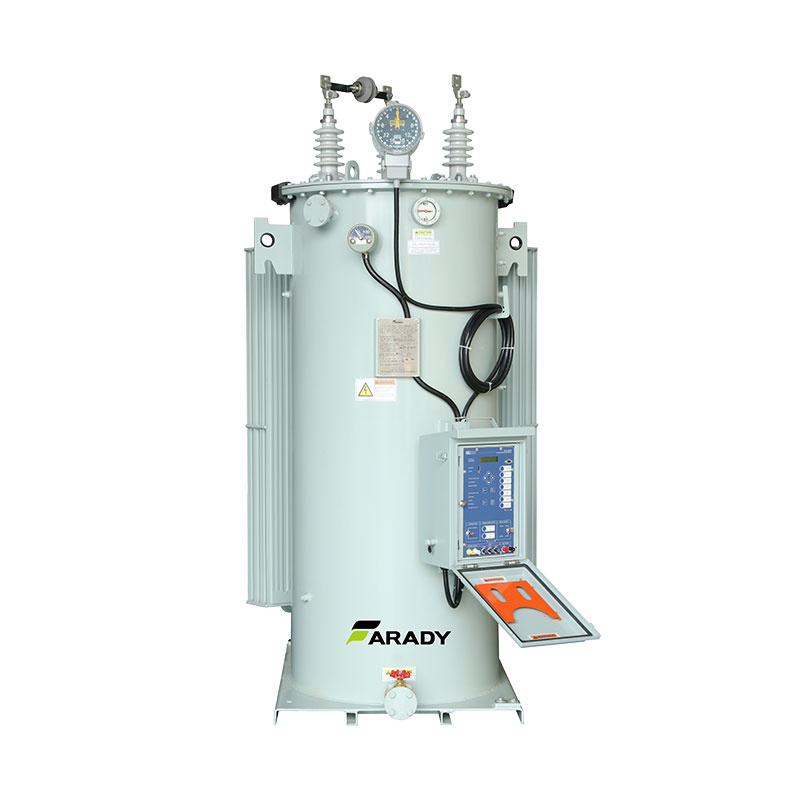

VR8 Series Single Phase Step Voltage Regulator01.jpg
VR8 Series Single Phase Step Voltage Regulator02.jpg

Single Phase Step Voltage Regulator

Model Series

VR-8

Rated Voltage

2.5～34.5kV

Standard

IEEE C57.15/ IEC 60076-21

Warranty

Two years

Application

Outdoor/Indoor



    Contact us Download
    product details
    Technical Parameters
    Resources
    Farady Electric VR-8 single phase step voltage regulators are tap-changing autotransformers. They regulate distribution line voltages from 10% raise (boost) to 10% lower (buck) in thirty-two steps of approximately 5/8% each. Voltage ratings are available from 2400 volts (60 kV BIL) to 34,500 volts (200 kV BIL) for 60 Hz and 50 Hz systems. Internal potential winding taps and an external ratio correction transformer are provided on all ratings so that each regulator may be applied to more than one system voltage. Smaller kVA sizes are supplied with support lugs for pole mounting and with substation or platform tie down provisions. Larger sizes are provided with substation bases with pad-mounting provisions.

    product-icoProduct Standards

    1. IEEE Std C57.15™Part 21: Standard requirements, terminology, and test code for step-voltage regulators
    2. IEC 60076-21 2018 version Part 21
    3. IEEE C57.12.00-2015™ General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
    4. IEEE C57.12.90-2015 IEEE Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
    5. Operating taps comply to IEEE requirements

    product-icoMain Features

    ● Regulator Controller
    ● Tap changer with motor and power supply
    ● Position indicator with ADD-AMP adjustment
    ● Two laser-etched nameplates
    ● Lifting lugs
    ● Oil drain valve and sampling device
    ● Upper filter press connection
    ● Oil sight gauge
    ● High-creep bushings with NEMA connectors
    ● Pole-type mounting brackets
    ● Substation base (substation units)
    ● External series arrester
    ● Automatic pressure relief device
    ● Control cabinet with removable front panel
    ● Ratio correction transformer
    ● Shunt & Series arresters

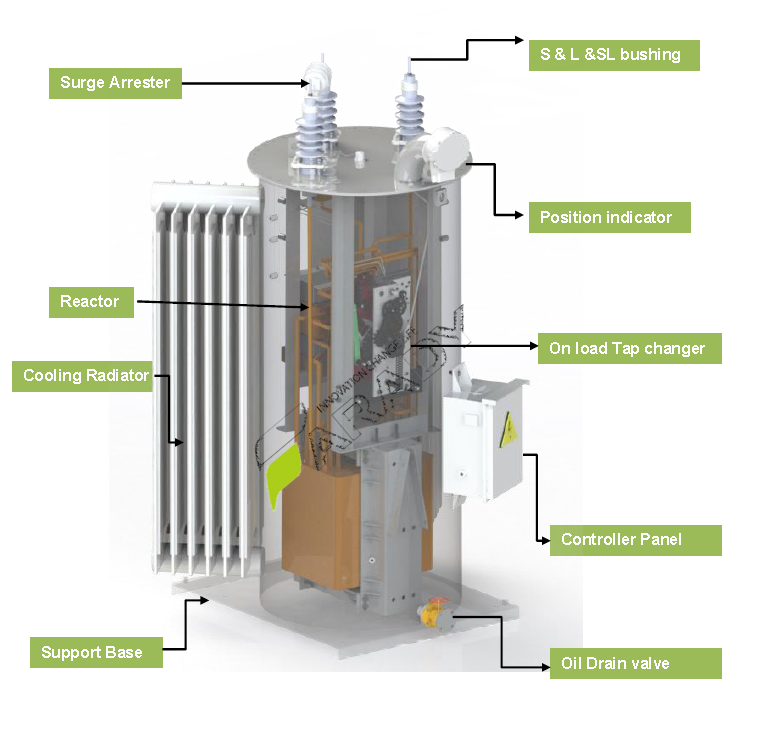

    product-icoProduct Design

    wechat_2025-09-20_095909_652

    product-icoRegulator controller

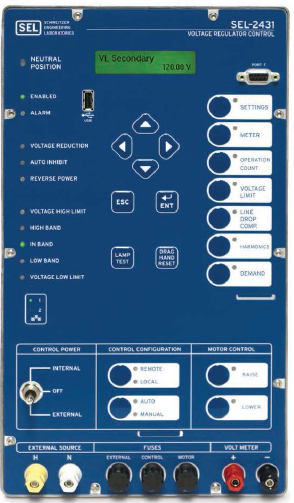

    VR-8 series step voltage regulator use Schweitzer Engineering Laboratories ,Inc(SEL) universal controller box model number  SEL-2431 Following  standard IEEE C37.118

    ◆ Built-In Reliability, Ten-Year Warranty
    ◆ Plug-In Voltage Regulator Compatibility
    ◆ Advanced Tap-Position Tracking
    ◆ Easy Application Settings
    ◆ Connect and Retrieve Data Quickly

    Operating temperature: -40degree-+85 degree
    Power source range: 88-132 VAC,
    auxiliary output source Range: 11-14vdc,
    output power: 6w at 12vdc
    Nominal current: 450mA,
    Current range: 45 to 540mA
    Frequency range: ±5hz of nominal(50-60Hz)
    phase angle range: -180 to 180 degree
    product-description2

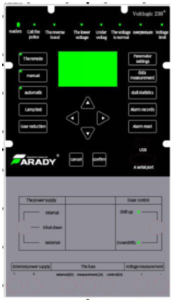

    FARADY Voltlogic-230 Digital Regulator Control is a microprocessor-based step-voltage regulator load tap changer control which design and manufactured by FARADY.

    ◆ Comply to IEC60255-1 and IEEE C37.118.

    ◆ Simple, intuitive, controls for voltage regulators, LTC transformers.

    ◆ Flexible communication options (MODBUS, IEC101/104, DNP3.0)integrate the controls to SCADA/DMS systems for remote control monitoring, volt/VAR optimization and distributed generation.

    ◆ Low cost of ownership delivered with industry leading warranties, a software based design approach and outstanding customer service and technical support.
    product-description3

    product-icoQuality Assurance

    Farady Quality assurance is an integral part of the process. All electrical testing is per IEEE & ANSI standards.Quality of processed parts and subassemblies are the responsibility of the production personnel. Regular quality inspections and spot checking are conducted to make sure that good and consistent quality is achieved and maintained.

    Routine Tests
    ● In-process Core Loss Test
    ● Operation Test
    ● Winding Resistance Test
    ● Polarity and Phase Displacement Test
    ● Insulation Power Factor Test
    ● Oil DBV Test
    ● No Load Loss & Excitation Test
    ● Impedance Voltage & Load Loss Test
    ● Voltage Ratio Test
    ● Applied Potential Test
    ● Induced Potential Test

    Type Tests
    ● Temperature Rise Test
    ● Lighting Impulse Level (BIL)
    ● Sound Level test
    ● Short circuit test

    product-icoRating and Dimensions-60HZ

    Voltage (kV) Current (Amperes) kVA Height Width Length Oil Un-tanking WGT
    (mm) (mm) (mm) （L） WGT(KG) (KG)
    7.62kV  50 38 1875 600 950 220 800 1450
    100 76 1875 625 950 225 820 1650
    150 114 2000 800 1125 250 850 1750
    219 167 2050 900 1225 305 980 1890
    328 250 2150 1000 1525 511 1580 3250
    438 333 2400 1050 1575 731 1988 3887
    546 416 2650 1100 1675 855 2222 4730
    13.8kV 50 69 2000 700 875 220 860 1450
    100 138 2000 700 1175 275 950 1800
    150 207 2050 1000 1300 360 1450 2665
    200 276 2375 1000 1625 680 2200 4320
    300 414 2625 1075 1800 1100 2350 5700
    400 552 2750 1175 1800 1500 2900 7500
    14.4kV 50 72 1875 675 1225 265 860 1680
    100 144 2050 1100 1125 350 1280 2250
    200 288 2375 1125 1425 555 2000 4000
    300 432 2450 1150 1675 800 2650 5000
    400 576 2750 1275 1775 1150 3165 6400
    19.92kV 50 100 2125 925 1250 400 1000 2100
    100 200 2200 1000 1400 580 1800 3300
    167 333 2300 1075 1450 680 2200 4120
    200 400 2375 1050 1675 800 2700 5000
    335 667 2650 1325 1825 1300 3500 6800
    34.5kV 50 165 3050 800 1275 757 1080 2000
    100 330 3125 975 1575 1480 1638 3350
    150 495 3200 1275 1825 1567 1765 3760
    200 660 3250 1150 1900 1648 1835 4100

    product-icoRating and Dimensions-50HZ

    Voltage Current kVA Height Width Length Oil Untanking Weight(KG) Total Weight(KG)
    (kV) (Amperes) (mm) (mm) (mm) (Liters)
    6.6kV 50 33 1716 800 965 217 341 609
    100 66 1715 813 965 231 341 609
    150 99 1755 853 995 250 380 700
    200 132 1818 915 1232 303 445 860
    300 198 1908 988 1333 500 678 1200
    400 264 1958 1008 1353 550 870 1450
    500 330 1958 1008 1353 620 1000 1780
    600 396 1990 1220 1450 980 1200 2150
    11kV 50 55 1817 694 890 208 389 661
    100 110 1818 864 1194 275 432 816
    150 165 1869 1193 1161 370 560 1080
    200 220 1920 1003 1320 360 649 1211
    300 330 2208 998 1633 674 1007 1964
    400 440 2462 1081 1784 1060 1059 2545
    500 550 2562 1081 1784 1060 1200 2670
    600 660 2580 1081 1784 1060 1300 2800
    15kV 50 75 1769 1007 1010 344 500 875
    100 150 1869 1107 1110 344 573 1007
    150 225 1971 1163 1278 479 707 1334
    200 300 2209 1095 1445 555 910 1800
    300 450 2310 1022 1701 791 1191 2252
    400 600 2539 1275 1786 1098 1434 2904
    500 750 2600 1786 1800 1560 1560 3200
    22kV 50 110 1920 927 1270 371 455 945
    100 220 2031 1005 1405 550 783 1494
    150 330 2183 1075 1467 659 1005 1873
    200 440 2234 1036 1704 765 1223 2243
    300 660 2414 1330 1848 1213 1566 3086
    33kV 50 165 2754 799 1294 757 1080 1957
    100 330 2947 1003 1585 1480 1638 3249
    150 495 2981 1285 1839 1567 1765 3616
    200 660 3086 1166 1921 1648 1835 3915
